Photon Transfer Curves

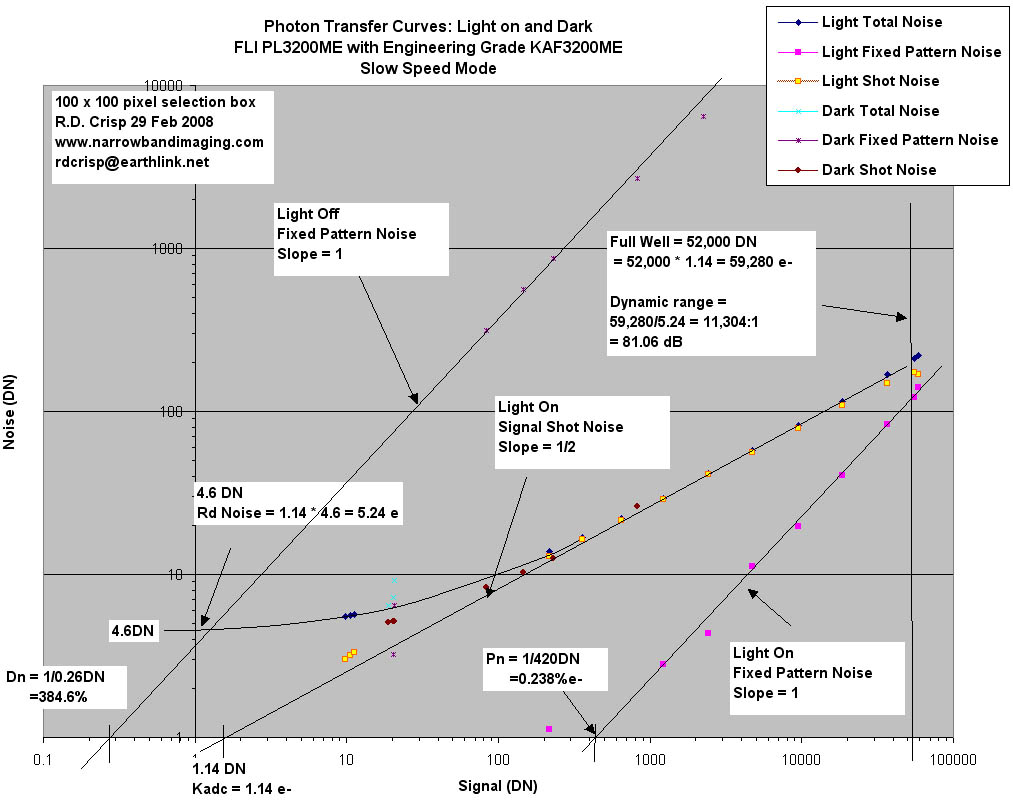

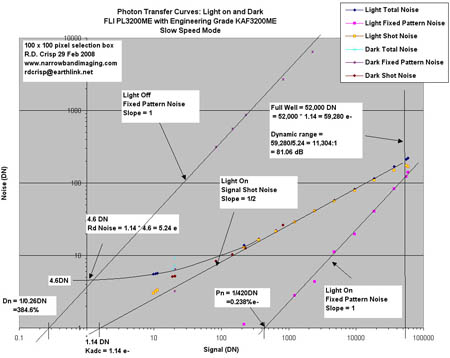

Proline 3200 with Engineering Grade Sensor (look at the high value of DSNU: that's why it rated eng grade)

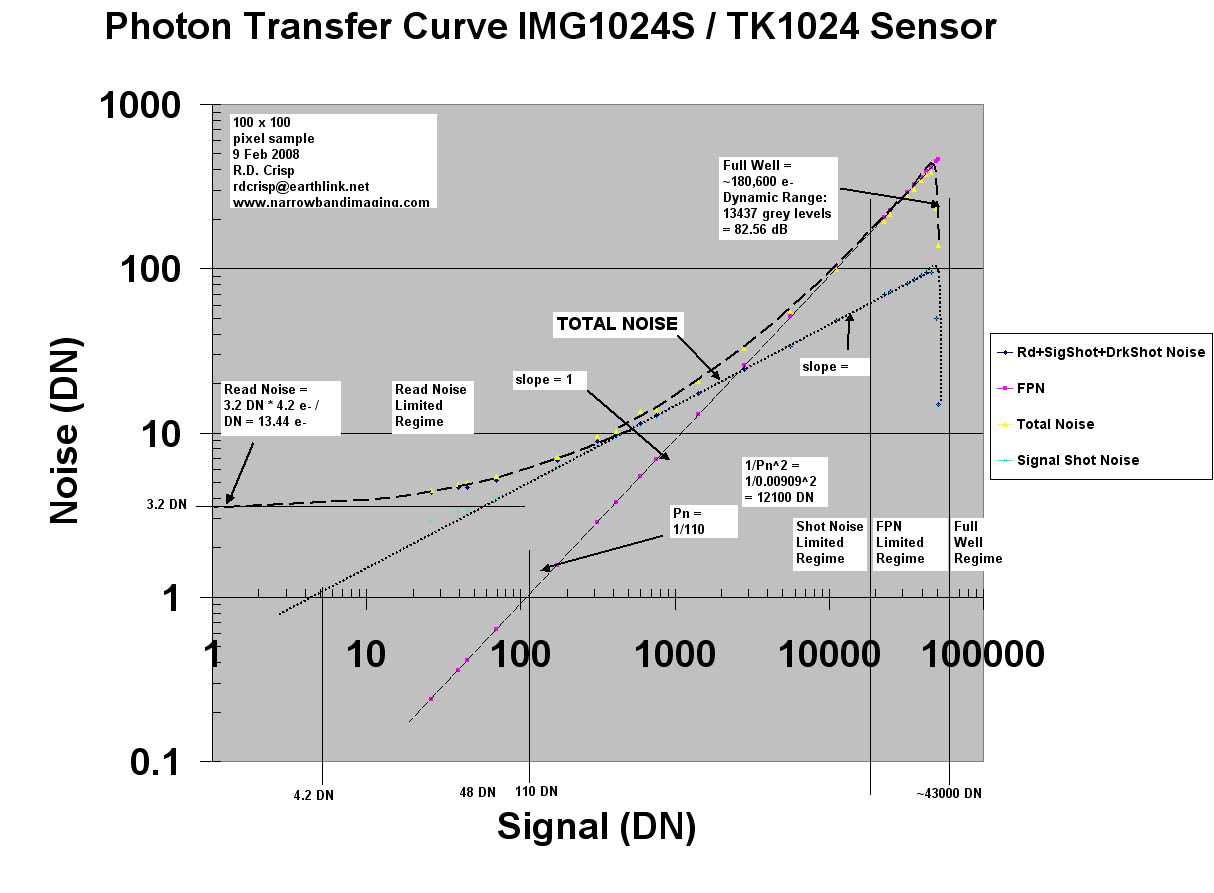

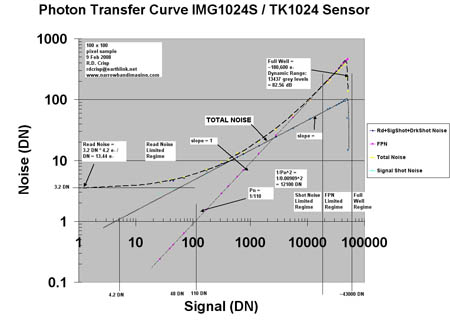

IMG1024S "Dream Machine" Photon Transfer Curve (note the high full well capacity: ~180Ke-)

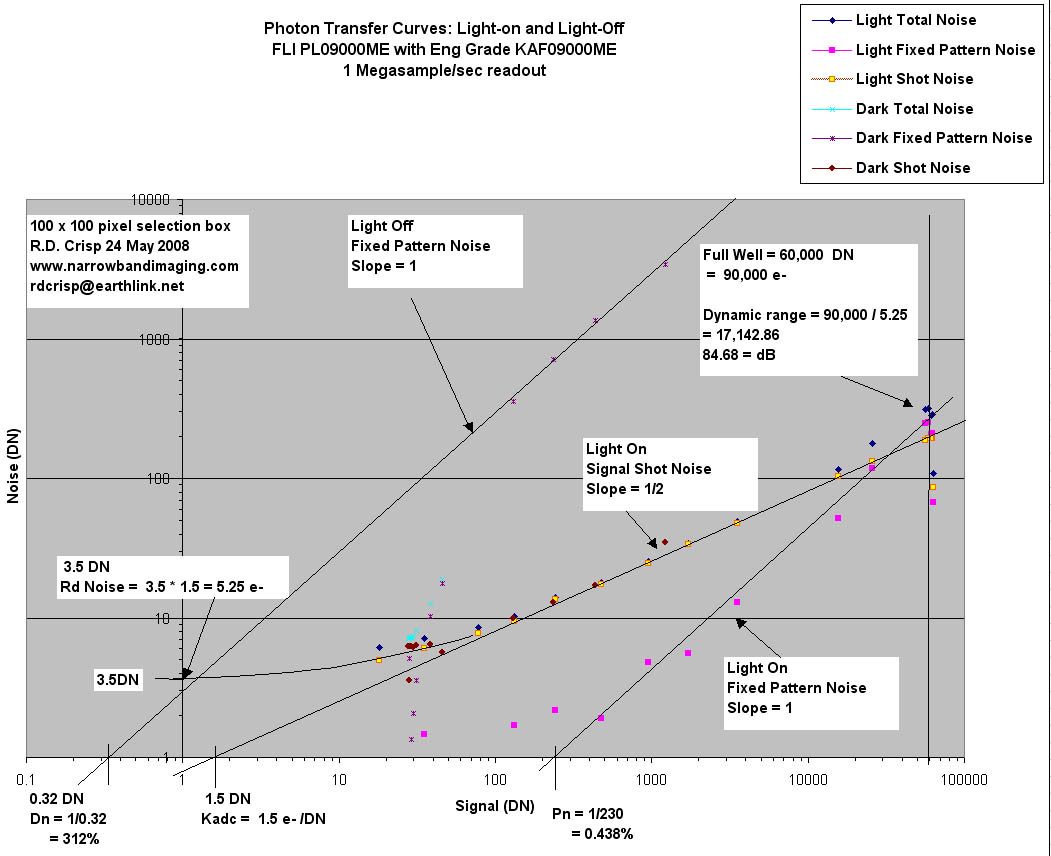

Proline 9000 with Engineering Grade Sensor (look at the high value of DSNU: that's why it rated eng grade)

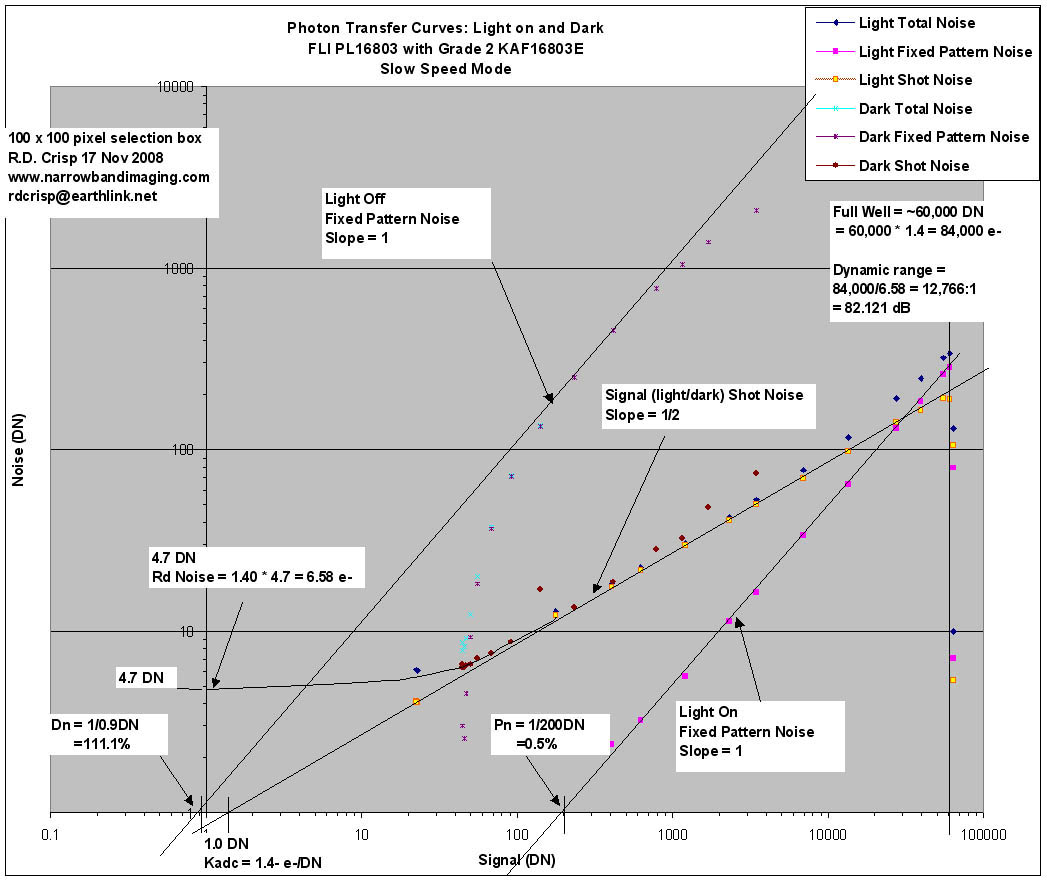

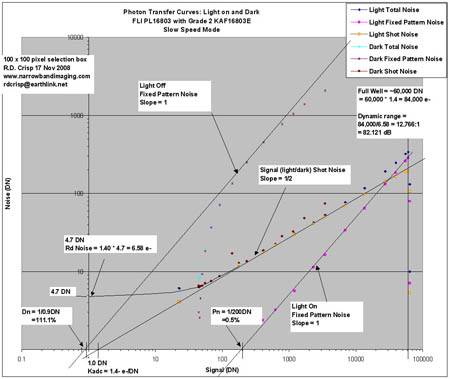

Proline 16803 with Grade 2 Sensor
